TWO-WAY RADIO COMMUNICATIONS

Two-Way Portable Radios



Icom’s Next Generation P25 Portables

The F7500 series P25 portables support the ever-advancing P25 standard. The needs for both public service and public safety organizations are also addressed with the new P25 series. Icom’s third generation of this product not only captures the essentials, but offers dozens of new features and functions all in one new small form factor size. Public service and public safety organizations will like the built-in SD Card, GPS, USB interface, Bluetooth, and color display. Activation options for trunking, OTAR, OTAP and more, allow for expanded or upgraded services without burdening the user with unnecessary features. Icom is the choice when you want to take your P25 communications to the next level.

  • CHANNELS:
1024 channels w/128 zones
  • OUTPUT POWER:
5W VHF (F7010), 5W UHF (F7020), 3W 700/800MHz (F7040)
  • FREQUENCIES:
136-174MHz, 380-470MHz, 450-512MHz, 700/800MHz
  • P25 CONVENTIONAL:
Built-In
  • P25 TRUNKING:
Upgrade Available
  • GPS:
Built-In
  • PROGRAMMABLE KEYS:
13 (F7000S
13 + 12 DTMF keys (F7000T)
  • WATERPROOF RATING:
IP68
  • VERSIONS:
Display w/Simple Keypad (7010S)
Display w/full DTMF keypad (7010T)

P25 Radio Solutions for All Public Safety Customers

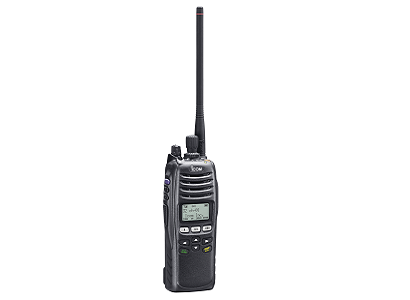

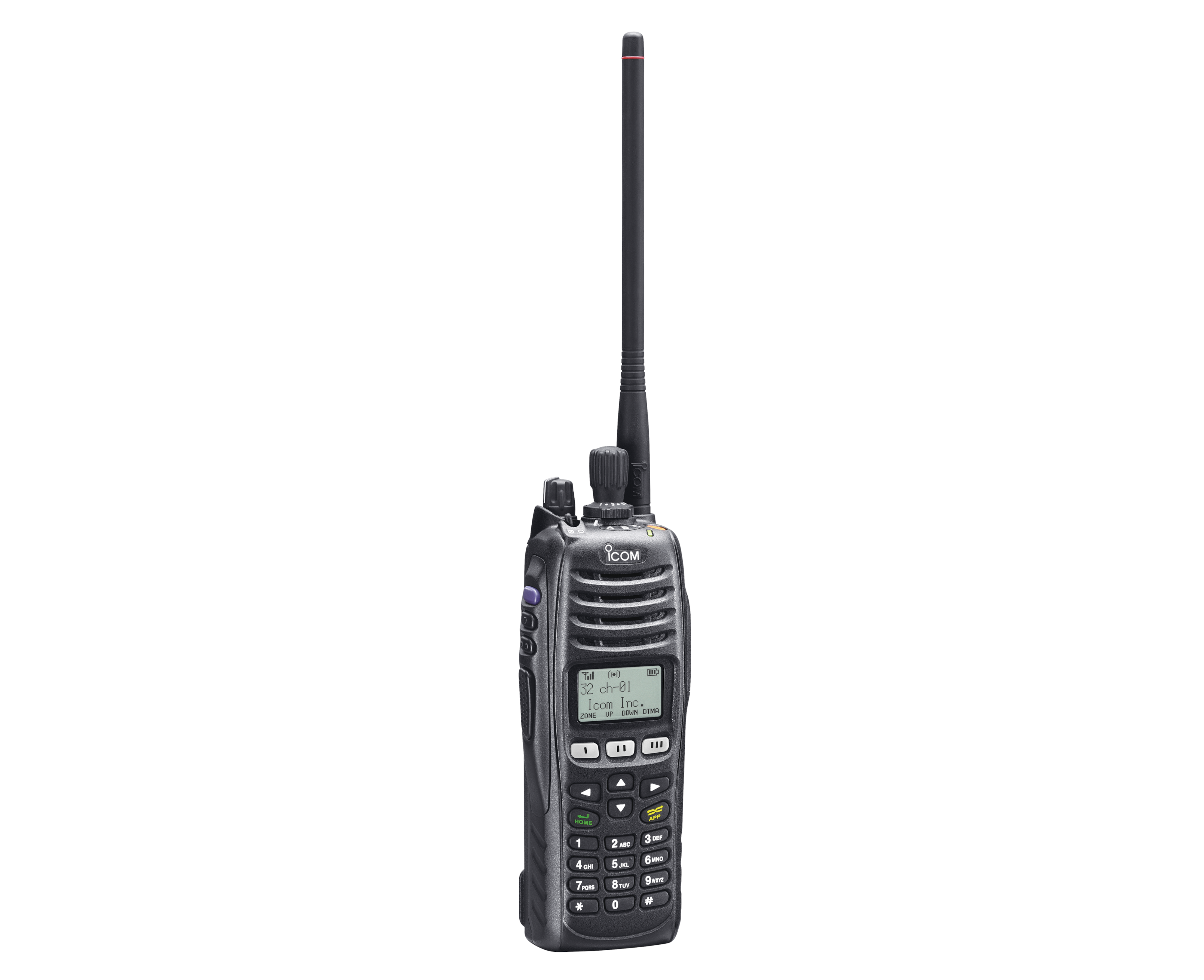

Heavy duty and portable, the F9011 and F9021 radios offer both analog conventional and P25 digital conventional operation. The P25 trunked option can be added to operate on local, regional or statewide P25 systems. Designed specifically for the public safety user, the F9011 portables provide excellent operation for both gloved and non-gloved users alike. This product series offers ergonomic advantages that make daily operation comfortable and tactical as expected. Users can choose from a basic non-display, display or display with keypad model. The large 24 character LCD displays various operating statuses and the 4-way cross keypad on the front panel provides an intuitive user interface. Icom is the smart choice for current – and future – public safety communication needs.

  • CHANNELS:
512 channels w/128 zones
  • OUTPUT POWER:
6W VHF (F9011), 5W UHF (F9021)
  • FREQUENCIES:
136-174MHz, 400-470MHz, 450-512MHz
  • P25 CONVENTIONAL:
Built-In
  • P25 TRUNKING:
Upgrade Available
  • PROGRAMMABLE KEYS:
12 Buttons, 1 Toggle, 1 3-position Switch
  • WATERPROOF RATING:
IP67
  • VERSIONS:
Model without Display of Keypad (F9011B)
Model w/Display and limited keypad (F9011S)
Model w/Display and full DTMF keypad (F9011T)

Affordable, High Performance Analog Portables

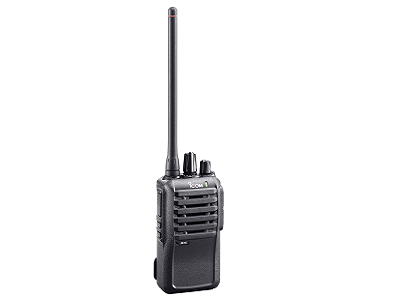

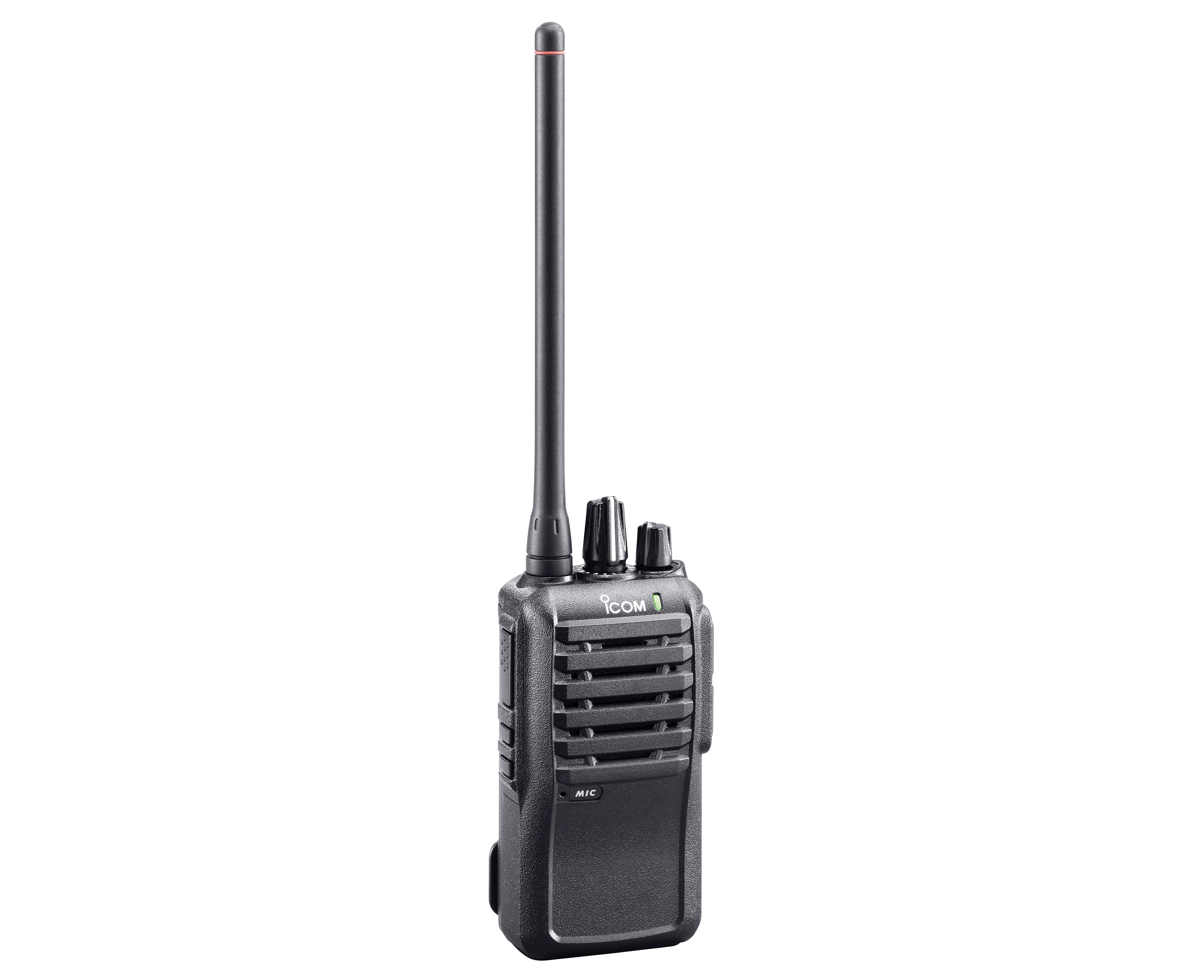

The F3001/F4001 Series is easy to use entry level portable with no special training required. The few knobs and buttons are generously sized for easy operation. This simple interface makes it ideal for high turnover environments and shift work where the radio is constantly passed from person to person. The radio series is ideal to meet the needs of schools, retail, golf courses, community centers and others with similar basic radio needs.

  • CHANNELS:
16 channels
  • OUTPUT POWER:
5W VHF (F3001), 4W UHF (F4001)
  • FREQUENCIES:
136-174MHz, 400-470MHz, 450-512MHz
  • WATERPROOF RATING:
IP54
  • PROGRAMMABLE KEYS:
3

Compact, Waterproof Analog Portables

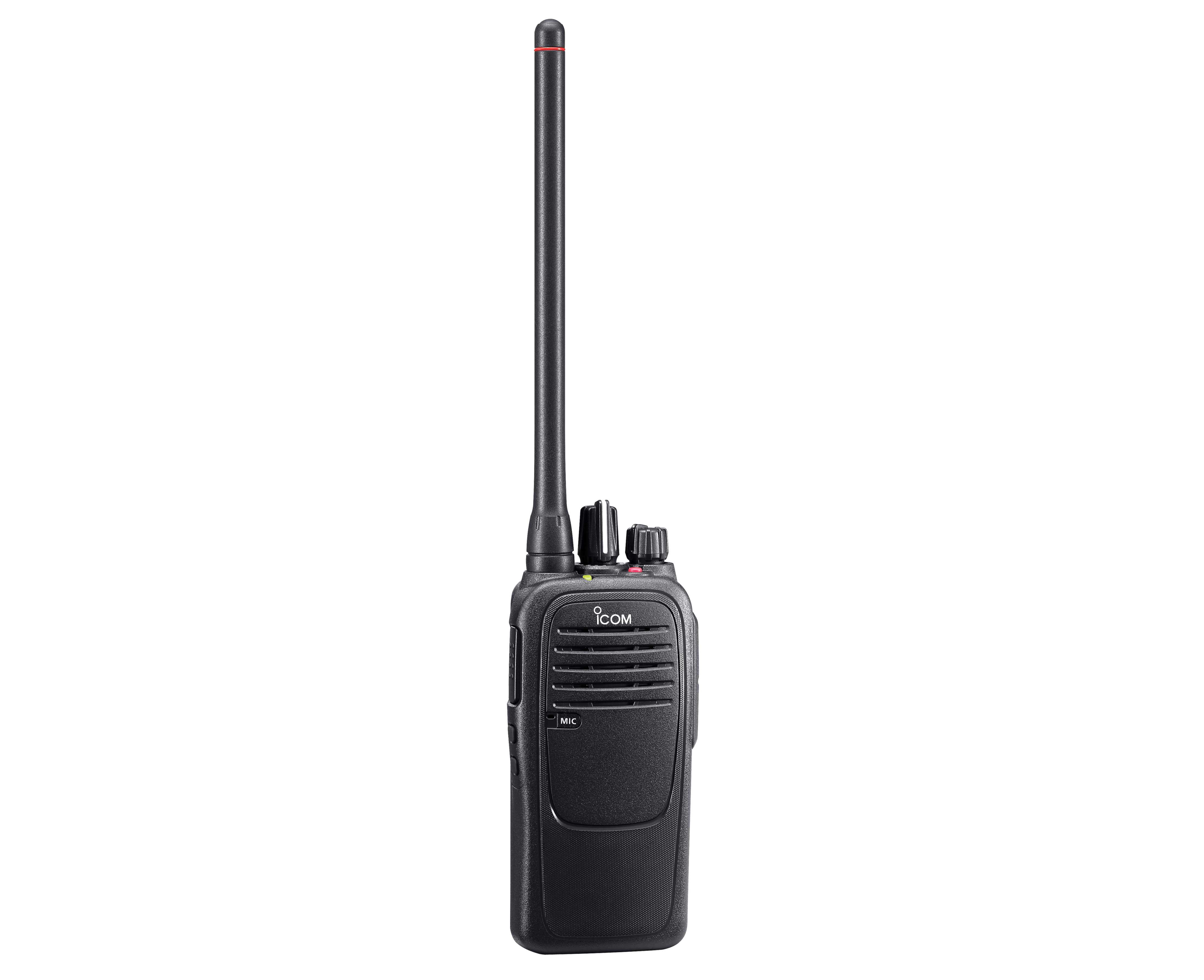

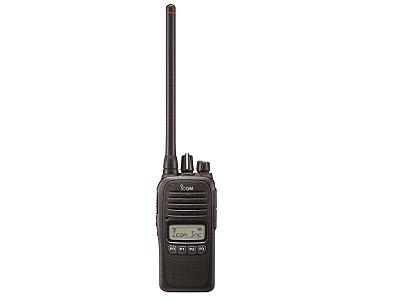

The F1000/F2000 Series is a sleek portable radio that fits nicely in your hand designed to be the go to entry to mid level radio. Three model choices, basic – no display, simple – display with simple keypad, and full – display and fully DTMF keypad, include an array of features such as a built-in motion sensor, channel announcement function, and a rugged waterproof & dustproof chassis. The radio series is ideal to meet the needs of a wide range of businesses such as those involved in the education, hospitality, and retail.

  • CHANNELS:
16 or 128 channels
  • OUTPUT POWER:
5W VHF (F1000), 4W UHF (F2000)
  • FREQUENCIES:
136-174MHz, 400-470MHz, 450-512MHz
  • WATERPROOF RATING:
IP67
  • PROGRAMMABLE KEYS:
3 or 7
  • VERSIONS:
Model without Display or Keypad (F1000)
Model w/Display and limited keypad (F1000S)
Model w/Display and full DTMF keypad (F1000T)

Icom’s Next Generation IDAS™ Portables

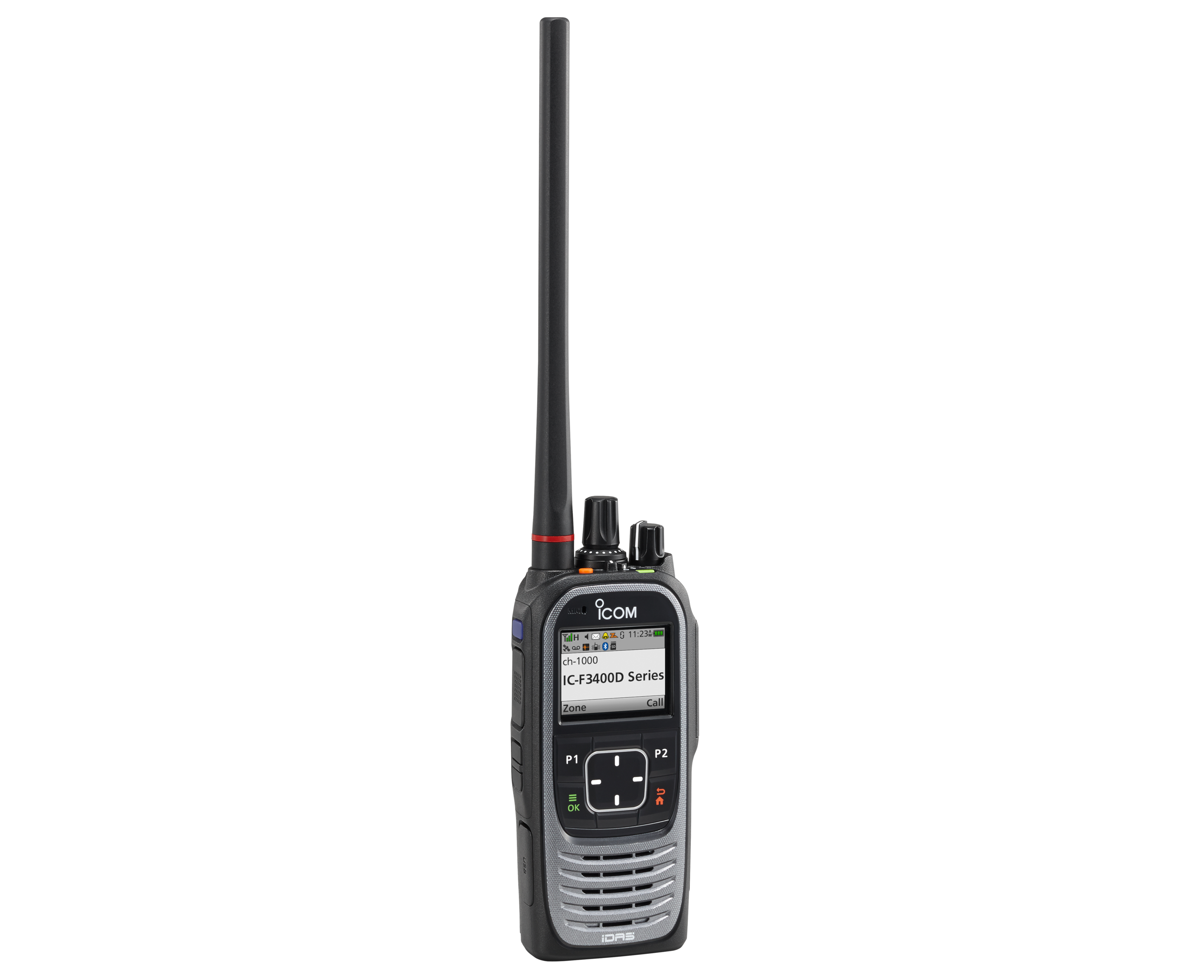

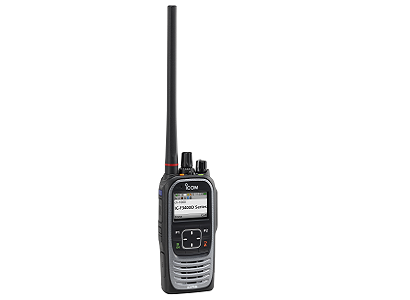

The F3400D series radios is Icom's new flagship IDAS product. Dozens of new features and functions are included all in one new small form factor size. Features like SD Card, USB interface and Bluetooth appear for the first time in this land mobile product. A brilliant color display allows for easy observation of critical information, in the dimmest of light to the brightest of sunshine. Icom is the choice when you want to take your communications to the next level.

  • CHANNELS:
32 channels w/2 zones (F3400D)
1024 channels w/128 zones (F3400DS/DT)
  • OUTPUT POWER:
5W VHF/UHF
  • FREQUENCIES:
136-174MHz, 380-470MHz, 450-512MHz
  • DIGITAL CONVENTIONAL:
IDAS Built-In
  • DIGITAL TRUNKING:
Upgrade Available/ LTR included
  • GPS:
Built-In
  • PROGRAMMABLE KEYS:
5 (F3400DS)
13 (F3400DS)
13 + 12 DTMF keys (F3400DT)
  • WATERPROOF RATING:
IP68
  • VERSIONS:
Model without Display or Keypad (F3400D)
Model w/Display and limited keypad (F3400DS)
Model w/Display and full DTMF keypad (F3400DT)
